Annual Hydrotechnical Hazard Monitoring:
High-Order River Crossing Integrity

Executive Summary

Primary Objective: To provide high-quality and high-precision Depth of Cover (DOC) information, ensuring asset integrity through advanced sub-surface mapping and bathymetric fusion.

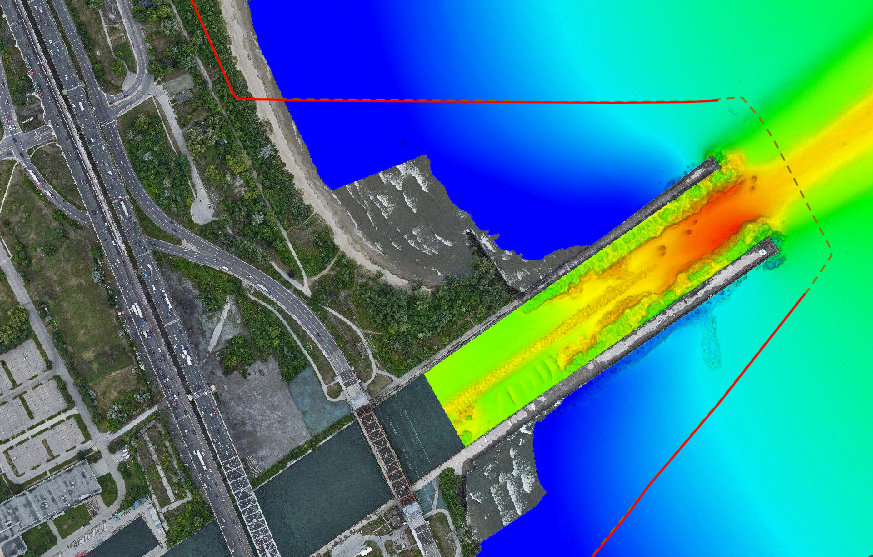

The Challenge

Identifying Submerged Threats to Asset Integrity

Watercourse crossings are the most volatile segments of a pipeline network, where invisible riverbed changes can lead to failure.

The Problem

Clients require more than just a depth measurement; they need to identify low-cover zones, localized scour holes, and submerged debris (such as large woody debris or boulders) that can cause vortex-induced vibrations or impact the pipe.

Dynamic Erosion

Lateral migration and bed degradation can expose pipelines to hydrodynamic loading in a single high-flow event, requiring immediate detection to prevent environmental incidents.

Technical Constraints

High turbidity and suspended sediment often make visual inspection impossible, necessitating high-frequency sonar capable of "seeing" through the water column to map bed morphology at sub-decimeter resolution.

The MSI Approach

High-Resolution Hazard Detection

MSI utilizes a rigorous “Dual-Link” verification process to ensure the underwater surface and the pipeline’s position are geodetically absolute.

Echo Sounding Fusion

MSI deploys a strategic combination of Multibeam (MBES) and Singlebeam (SBES) echosounding technologies. This fusion allows us to capture high-density 3D morphological data in open reaches while maintaining the versatility to survey shallow, high-clutter, or restricted environments where traditional topographic methods may be limited.

Specialized Swift Water Operations

Our reputation is built on the caliber of our field teams. MSI crews are highly trained and Swift Water Certified, possessing the professional comfort and technical skill required to operate safely and precisely around any body of water—from calm reservoirs to high-velocity mountain river systems.

High-Density Surface Mapping

Delivering over 100 pts/m2 provides the resolution necessary to distinguish between natural riverbed features and hazardous debris.

Bathymetric Change Detection

MSI utilizes a customized in-house algorithm on point cloud data. This allows for precise point-to-point tracking of riverbed changes between survey epochs, identifying subtle scour patterns and sediment migration that standard surface-to-surface modeling misses.

Sub-Bottom Profiling (SBP) Integration

To remove the guesswork from pipeline depth analysis, we utilize Sub-Bottom Profiler technology. By emitting low-frequency acoustic pulses that penetrate the riverbed, we can accurately locate the buried pipe and map the sub-surface strata,

Results

Total Accountability in Swift Water

Hazard Identification:

Successfully identifies Exposed Pipe, Critical Low-Cover, and Submerged Debris with immediate notification protocols for the client.

Reputation for Difficulty

MSI is the preferred contractor for "Difficult Reach" surveys. Field teams are Swift Water Certified, allowing for data acquisition in high-velocity environments where scour is most active.

Engineering-Grade Deliverables

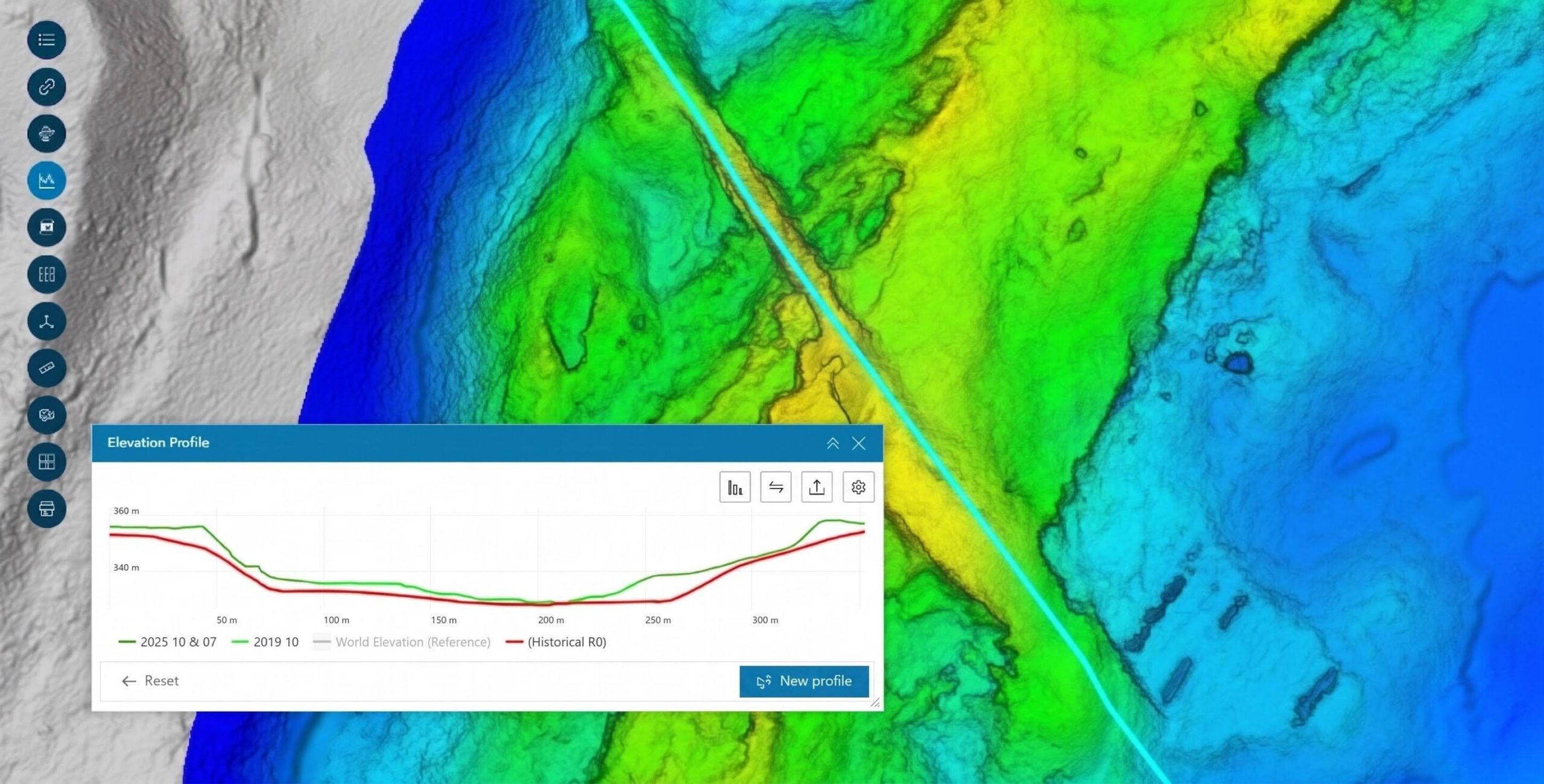

Reports integrate SBP, ILI, and bathymetric data into comprehensive profiles and plans, hosted via the GeoView/CorrView portals for longitudinal trend analysis.

Geographic Reach: A North American Footprint

While our headquarters remains in Calgary, our operational reach has expanded alongside our technical capabilities. In 2005, we began by serving Alberta and British Columbia. Today, MSI is a cross-border geospatial partner with the proven ability to mobilize in diverse and extreme environments.
